Automotive Water Pump solutions


System diagram

  • Description

    BAT32A237 with Arm Cortex® M0+ core couples with CMSA6164 IC driving loads up from 45W to 150W for water pump system and battery cells cooling , application for automotive engine system with extended lifespan and superior efficiency.

    Performance characteristics:

    >BAT32A237 is compliant with AEC-Q100 Grade 1 automotive standard, achieving automotive-grade reliability and safety standards.

    >Operating voltage range 12V/24V,Single-shunt resistor、Sensorless Field Oriented Control (FOC) control

    >Maximum loading ≤150W,500~20000 rpm range

    >No-load, Under/over voltage, over current, over temperature, pass-thought, out of phase and stalling protection and prevention Constant and variable speed control with100% motor startup rate in a smooth and jitter free fashion

    >High lift and large flow and Ultra -fast protection response

    >Highly integrated, low BOM cost, support multiple LIN  communication protocols

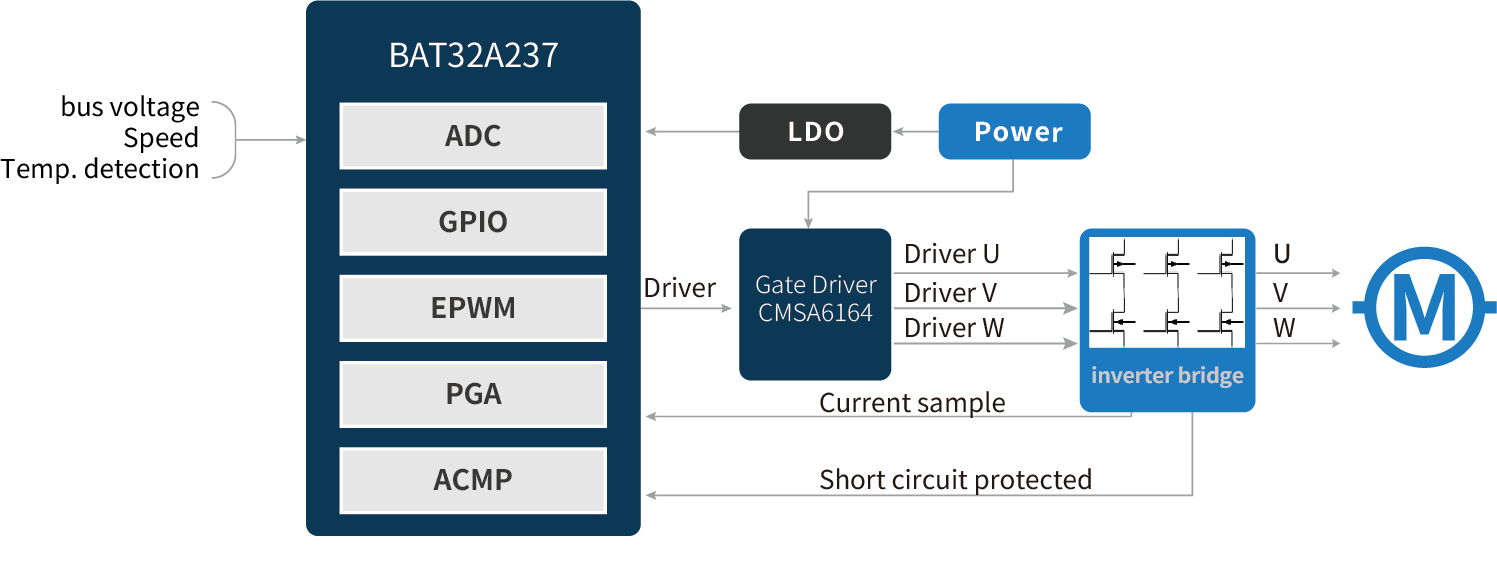

  • System diagram
