Range hood

Description

As people's awareness of energy saving and emission reduction increases, range hoods are a product that is frequently used in home life, and the market needs high-efficiency motors and motor control solutions. SCT develops an FOC control scheme for this application, which improves the operating efficiency of the motor while effectively reducing the operating noise and vibration of the motor.

Performance characteristics：

CMS32M55xx high pressure range hood program performance characteristics:

> Integrate 12Bits high-speed ADC, multiple high-performance analog operational amplifiers and programmable PGA, streamline peripheral circuits

> Non-inductive FOC, dual resistance control mode

> Self-convergence and direct closed-loop startup algorithm, adapt to different load startup, 100% startup success

> Good start effect in forward and backward wind, fast and stable start, no out of step, smooth operation and low noise

> Constant torque/constant power control

> Support communication control via UART interface

> Possess excellent CE, ESD performance, EFT>4200V

System diagram

Design & development

Evaluation kit

Product	Name	Describe	Category

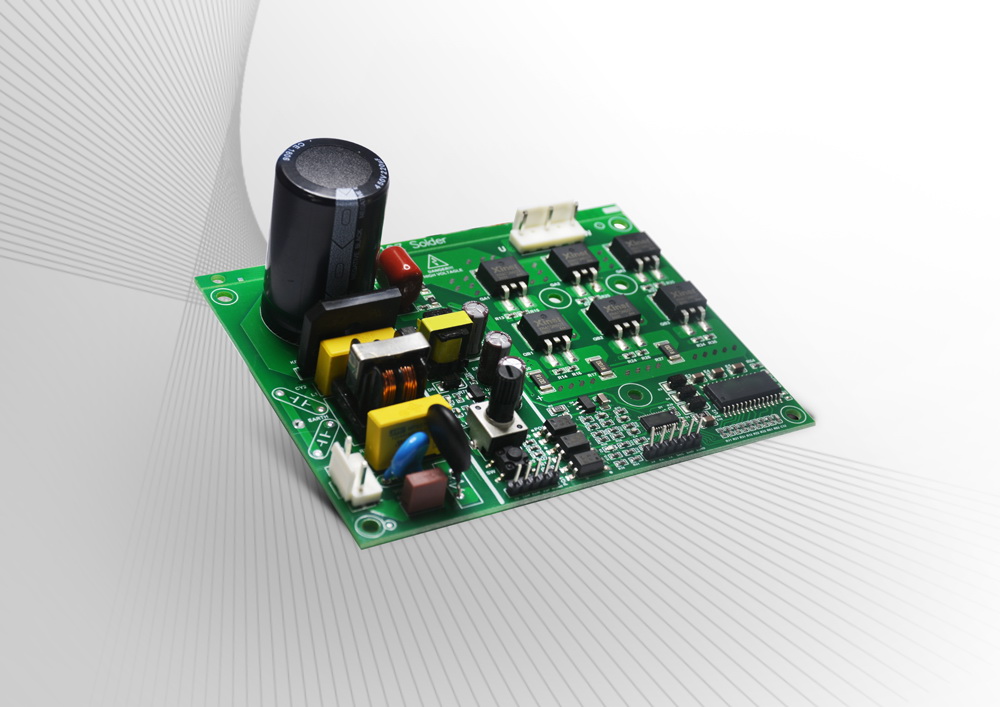

	High pressure range hood development kit	The high-pressure range hood development kit is a high-voltage non-inductive FOC development board developed by using CMS32M5510. It supports non-inductive FOC and dual resistance control. It has fast start-up, stable operation and low noise. This kit provides an ideal evaluation environment for developers and supports users in the development of high-pressure range hoods. The CMS32M5510 main control chip used in this development board has two operational amplifiers, two PGAs, multiple comparators, and multiple high-precision 12-bit ADCs.	Development Kit
