  • BAT32A239

    AEC-Q100 Grade 1, Cortex M0+, 256KB Flash, 2xCAN、LIN、 48~80 Pin multiple packages

    Datasheet >

    BAT32A239 series uses the high-performance ARM Cortex-M0®+ 32bit RISC core, which can operate at 64MHz ,256KB Flash Memory ,32KB SRAM,2.5K Data Flash Memory.Various communication interfaces  are integtated such as I2C, SPI, UART, LIN, CAN bus, as well as  analog front-end with operational amplifiers, ADC, 12bit A/ D converter,temperature sensor, 8bit D/ A converter,comparator.With the integrated event linkage controller, direct connection between hardware modules can be realized without CPU intervention, which is faster than  interrupts.

    The BAT32A239 microcontroller family's excellent reliability, rich integrated peripheral functions, and excellent low-power performance make it suitable for a wide range of automotive product development,such as Energy storage inverter, instrument panel, UWB, Ultrasonic wave radar,OBC, Matrix LED Controller, Electric tailgate,etc application.


    Features

    > ARM Cortex M0+ core

    > Up to 64MHz @2.0V-5.5V

    > Operating voltage: 2.0V-5.5V

    > Operating temperature: -40℃-125℃

    > 256KB Flash > 32KB SRAM

    > 2.5KB data flash

    > 17 16-Bit timers

    > 2-channel analogue comparator with dual-edging-lag function

    > 2-channel PGA

    > built-in 12-bit ADC with sampling rate as 1.42Msps

    > 8-bit D/A converter

    > enhanced DMA controller

    > linkage controller

    >4 serial ports which can be configured either as 1-channel UART/2-channel SPI/2-channel simplified i2c respectively

    >  UART of unit 0 supports LIN Bus communication

    >  2 dedicated standard i2c ports

    >  2-channel CAN

    >  Built-in 1 channel PLL

    >  75 general GPIO

    >  built-in button-pressing interruption check available

    >  built-in clock output/buzzer output controlling circuitry

    >  abnormal storage space access error, hardware CRC calibration Inspection, special SFR protection to prevent misoperation

    > 128-bit unique ID number

    >  Conforms to AEC-Q100 Grade 1 standard

    > Package: LQFP48/QFN48/LQFP64/LQFP80


  • Product model

    Part Number Package Frequency (MHz) Core Temp Voltage Memory Type ROM RAM Data Flash GPIO DMA Timer LSE WDT/WWDT RTC UART I²C SPI CAN LIN PWM/EPWM SAR-ADC SAR-ADC-bit SAR-ADC-ch SAR-ADC-speed(Msps) DAC DAC-bit COMP PGA LCD
    SAR-ADC-unitSAR-ADC-bitSAR-ADC-chSAR-ADC-speed(Msps)DAC-unitDAC-bit

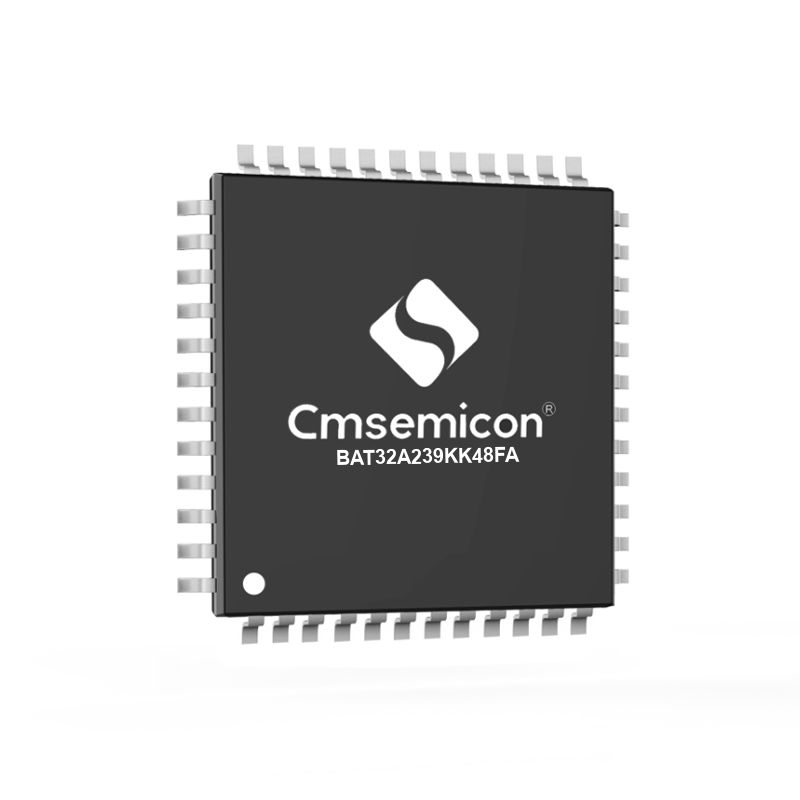

    BAT32A239KK48FA LQFP48 64 M0+ -40 ~125 2.0V~5.5V FLASH 256KB 32KB 2.5KB 45 40 17 Y 1 1 3 5+2 5 1 1 16 1 12 15 1.42M 2 8 2 2

    /

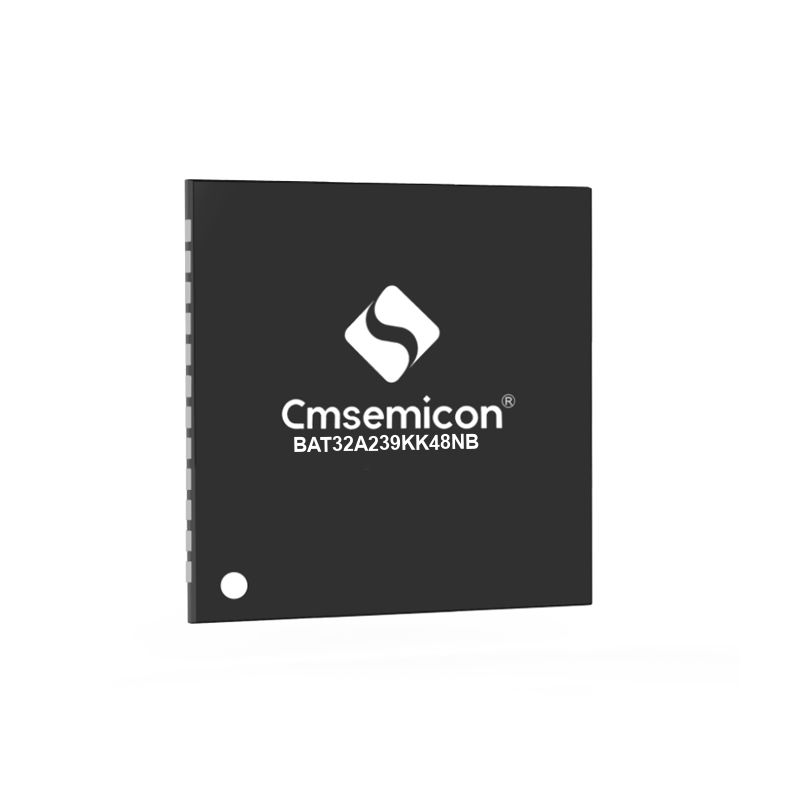

    BAT32A239KK48NB QFN48 64 M0+ -40 ~125 2.0V~5.5V FLASH 256KB 32KB 2.5KB 45 40 17 Y 1 1 3 5+2 5 1 1 16 1 12 15 1.42M 2 8 2 2

    /

    BAT32A239KK64FB LQFP64 64 M0+ -40 ~125 2.0V~5.5V FLASH 256KB 32KB 2.5KB 59 40 17 Y 1 1 3 6+2 6 1 1 16 1 12 16 1.42M 2 8 2 2

    /

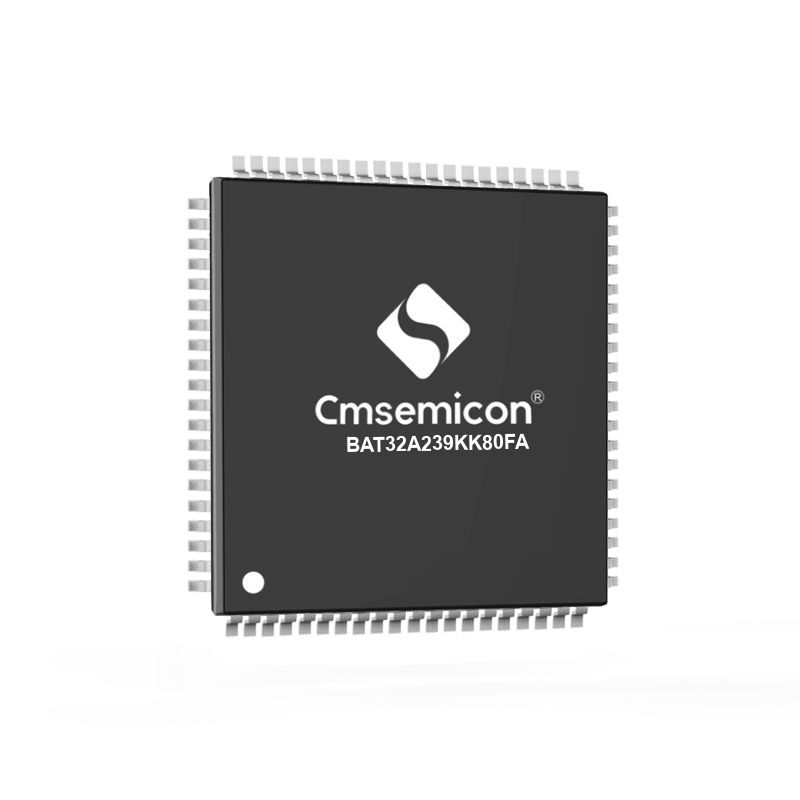

    BAT32A239KK80FA LQFP80 64 M0+ -40 ~125 2.0V~5.5V FLASH 256KB 32KB 2.5KB 75 40 17 Y 1 1 4 8+2 8 2 1 16 1 12 21 1.42M 2 8 2 2

    /

  • Design & development

    Documentation
    Name Version Describe Download
    BAT32A239 data sheet V1.01

    BAT32A239 chip feature, performance indicators, packaging information, etc.

    Download >
    BAT32A2x9 user manual V1.00

    BAT32A2x9 modules, chip registers, clocks, storage, etc.

    Download >
