The CMS32L051 is a mainstreaming MCU series that we designed based on ARM-Cortex M0+ which has a operating frequency being as 64MHz, operating voltage being ranged within 1.8V~5.5V, 64KB Flash and 1.5KB Data Flash, 8KB SRAM, 45 GPIO, integrated ADC, general timer, RTC, SPI, I2C DMA and different kinds of peripheral facilities. This series is mainly utilized in consumer electronics, medical healthcare facilities, household appliances, surveying instruments, industrial controls and etc.

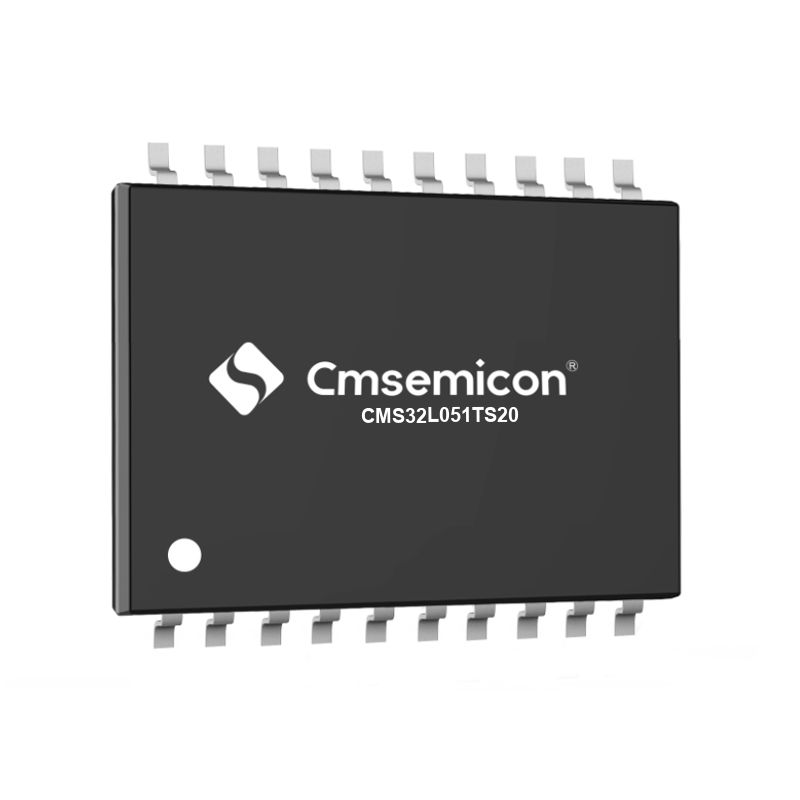

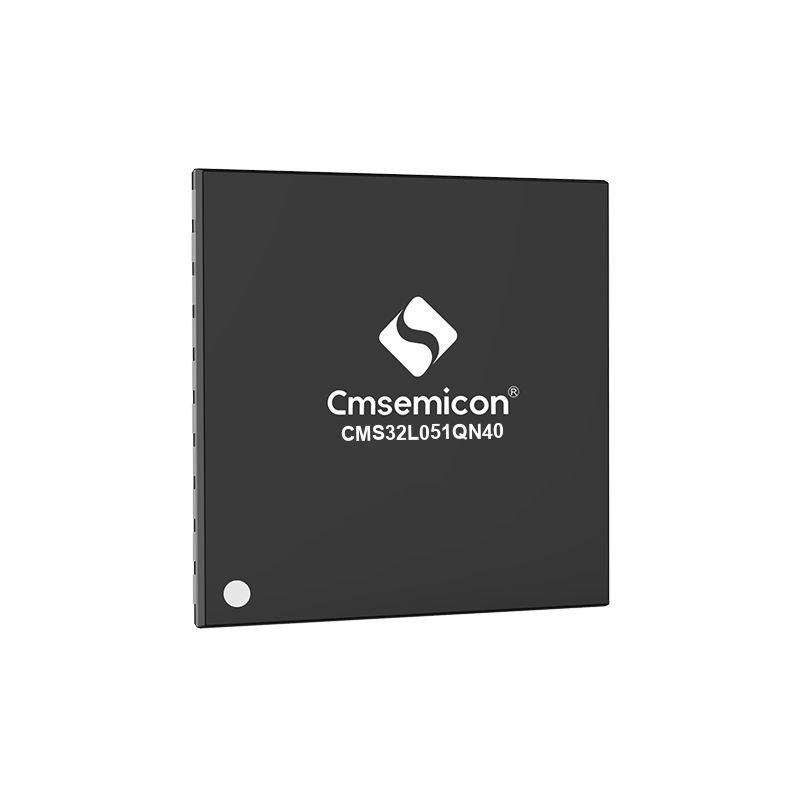

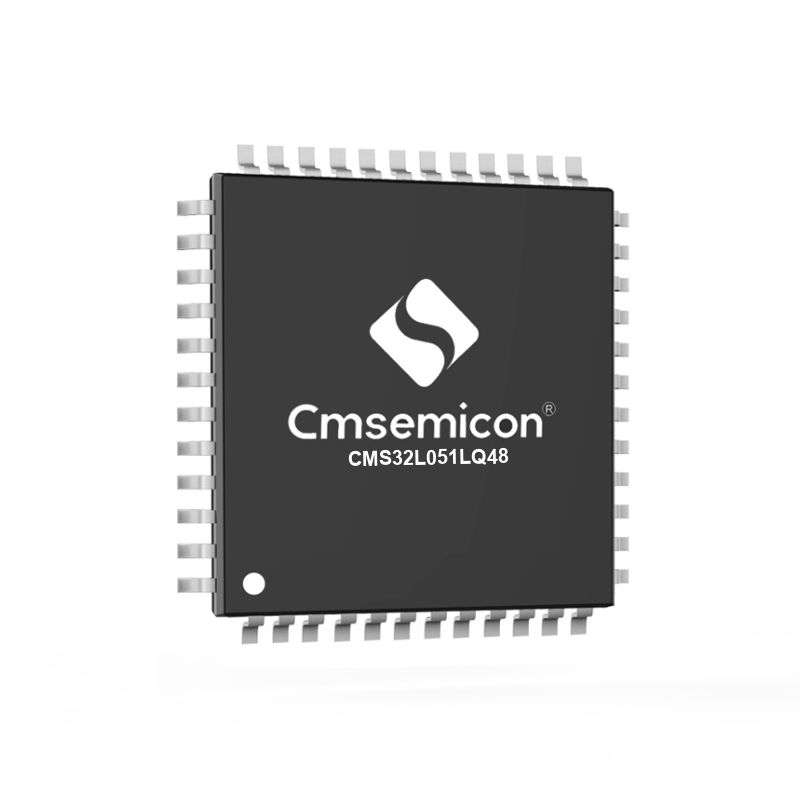

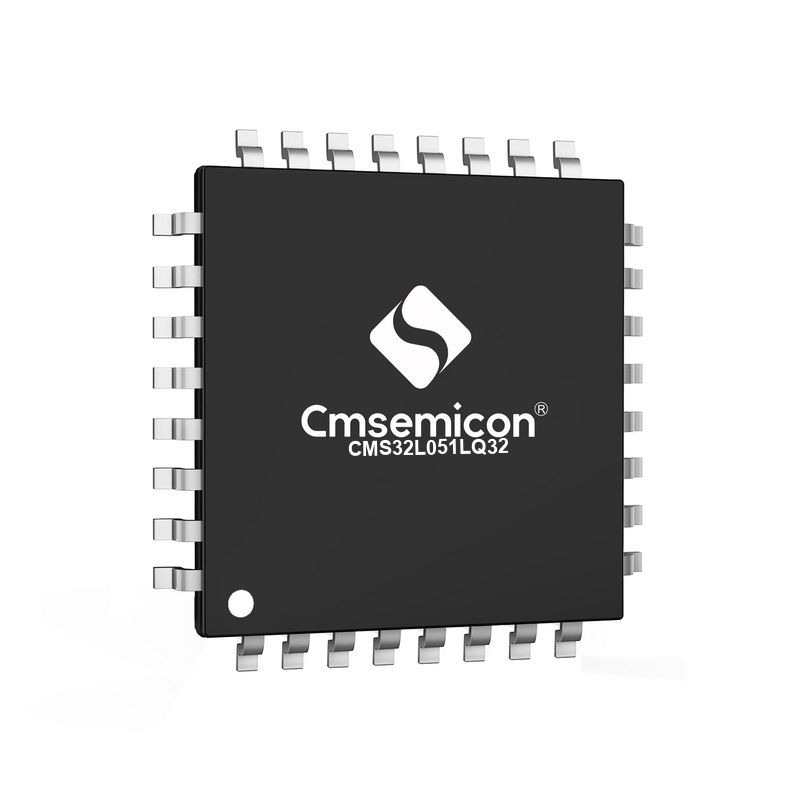

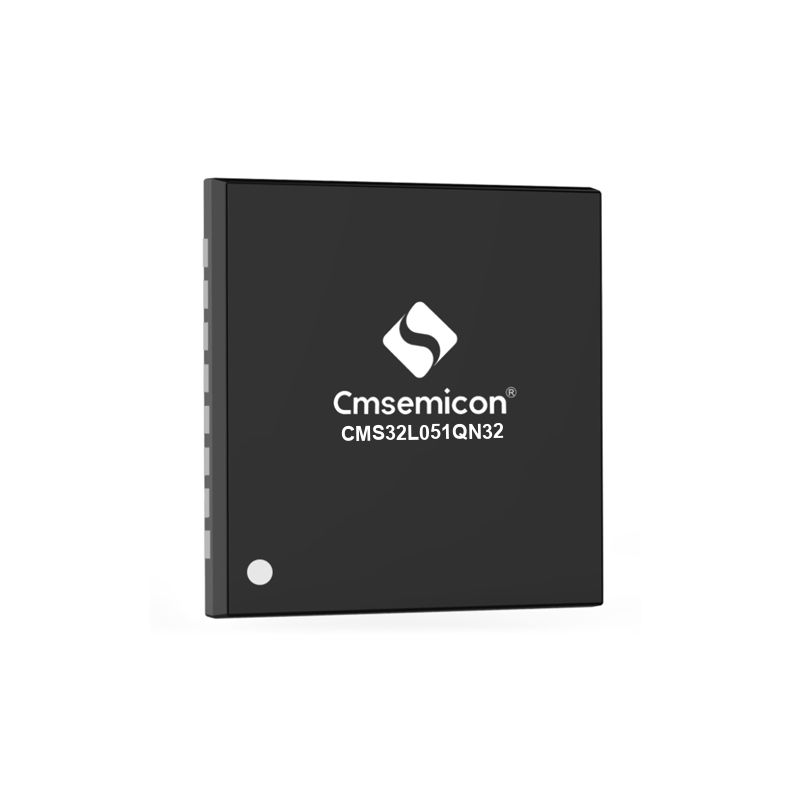

Most of the digital functions support a free IO mapping.The chip is packaged in the forms of QFN20、TSSOP20、QFN24、SSOP24、LQFP32、QFN32、QFN40、LQFP48.

> ARM Cortex M0+ cored

> maximum operating frequency:64MHz @1.8V-5.5V

> operating voltage：1.8V-5.5V

> operating temperature：-40℃ - 105℃

> 64KB Flash

> 8KB SRAM

> 1.5KB Data Flash

> 45 GPIOs

> flexible system clock capable of being changed without restriction

> hardware single period multiplier module

> 8 16-bit general timer

> 1 15-bit interval timer(low power-consumption timer)

> 1 WDT

> 1 RTC

> enhanced DMA controller

> linkage controller

> A/D convertion-35-channel high-precision 12-bit ADC

> 1 standard SPI port, 5 simplified SPI port

> 1 standard I2C port, 5 simplified I2C port

> 3 UART ports with LIN-Bus supported

> 1 IrDA channel

> multiple low power consumption modes supported: sleep/deep sleep/power-down

> 80uA @deep sleep mode

> 5uA @power-down mode+32.768KHz+RTC

> IEC/UL 60730 fitted

> anomalous storage accessibility report, hardware CRC check, special SFR protection, these prevent mis-manipulations

> 128 digit unique id serial number

> packaging：QFN20/TSSOP20/QFN24/SSOP24/LQFP32/QFN32/QFN40/LQFP48
