Product Microcontroller SC8P series SC8P171xC

Product description

Product model

Design & development

  • SC8P171xC

    OTP ADC type supports C chip, supports internal RC oscillator 8MHz and external XT crystal oscillator 8MHz, working voltage 2.2V-5.5V.


    Datasheet >

    SC8P171xC is a Cmsemicon OTP ADC chip that supports C. It supports internal RC oscillator 8MHz and external XT crystal oscillator 8MHz, working voltage 2.2V-5.5V, GPIO up to 18, built-in LVD module, WDT, LCD, and enhanced capture, comparison and PWM module, high-precision 12-bit ADC and 16-bit/8-bit timer. Industrial standard design, can work from -40℃ to 85℃, and provide SOP8, SOP14, SOP16 and SSOP20 packages.


    Features

    > OTP ADC chip

    > Working voltage frequency: 3.0V-5.5V @8MHz, 2.2V-5.5V @4MHz

    > Working temperature: -40℃-85℃

    > OTP 1.5K x 16Bit/2K x 16Bit, 176 x 8Bit RAM

    > Support internal and external oscillation mode

    > Up to 18 general-purpose GPIO

    > 12-bit high-precision ADC

    > Built-in LCD driver module

    > Enhanced capture, compare and PWM module (CCP)

    > 1 16-bit timer, 2 8-bit timers > Built-in WDT function

    > Built-in low voltage detection function (LVD)

    > Package types: SOP8, SOP14, SOP16 and SSOP20


  • Product model

    Part Number Package Frequency (MHz) Core Temp Voltage Memory Type ROM RAM Data Flash EEPROM GPIO DMA Timer LSE WDT/WWDT RTC UART I²C SPI CAN LIN PWM/EPWM SAR-ADC SAR-ADC-bit SAR-ADC-ch SAR-ADC-speed(Msps) DAC DAC-bit OPA COMP PGA Driver LCD LED Touch Encryption Other Interface
    SAR-ADC-unitSAR-ADC-bitSAR-ADC-chSAR-ADC-speed(Msps)DAC-unitDAC-bit
    SC8P1710C SOP8 8 RISC -40~85 2.2~5.5 OTP 1.5K×16 176B / / 6 / 1x16 / / / / / / / / / 1 12 4 / / / / / / /

    /

    /

    		 / / /

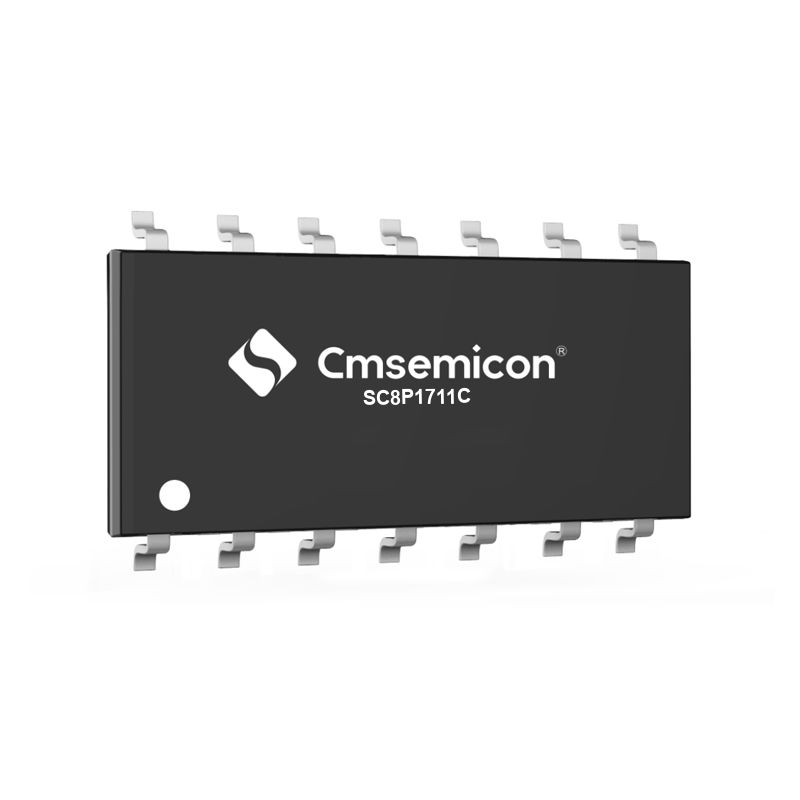

    SC8P1711C SOP14 8 RISC -40~85 2.2~5.5 OTP 2K×16 176B / / 12 / 1x16 / / / / / / / / / 1 12 7 / / / / / / 3com

    3com

    /

    		 / / /

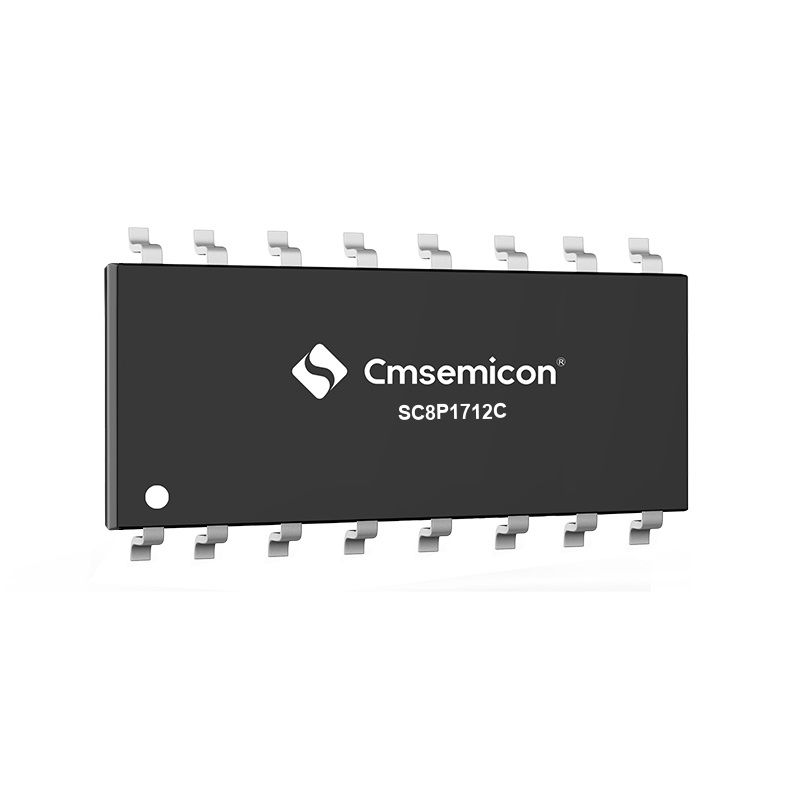

    SC8P1712C SOP16 8 RISC -40~85 2.2~5.5 OTP 2K×16 176B / / 14 / 1x16 / / / / / / / / / 1 12 7 / / / / / / 4com

    4com

    /

    		 / / /

  • Design & development

    Develop software
    Product Name Describe Version
    SCMCU Writer

    SCMCU Writer burning software


    		 V9.01.09
    SCMCU IDE

    SCMCU IDE compilation software


    		 V2.00.11
