OTP ADC type supports C chip, supports internal RC oscillation 16MHz, working voltage 1.8V-5.5V, GPIO up to 14.
OTP ADC type supports C chip, supports internal RC oscillation 16MHz, working voltage 1.8V-5.5V, GPIO up to 14.

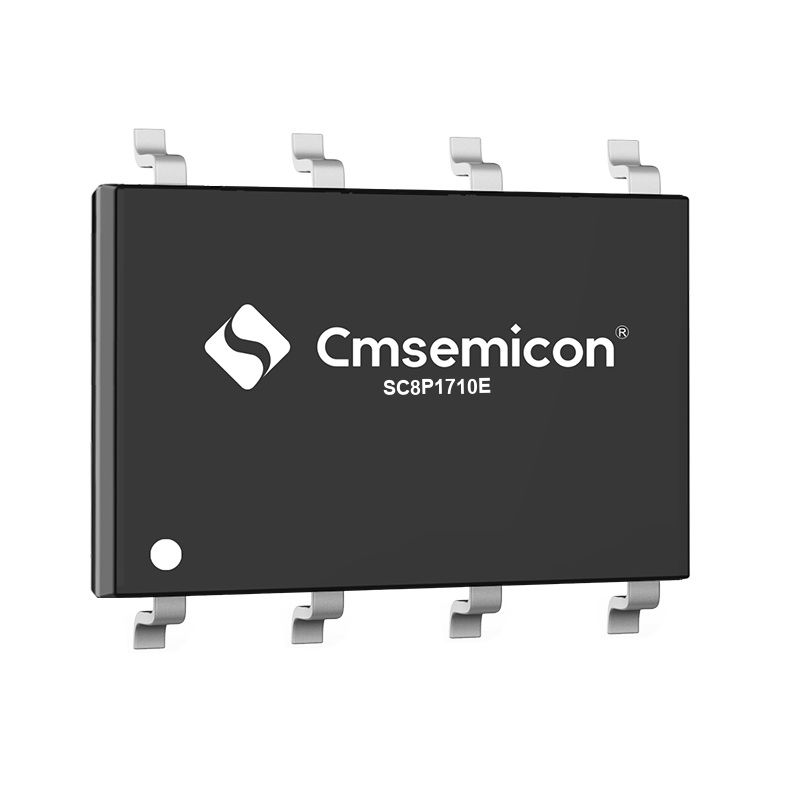

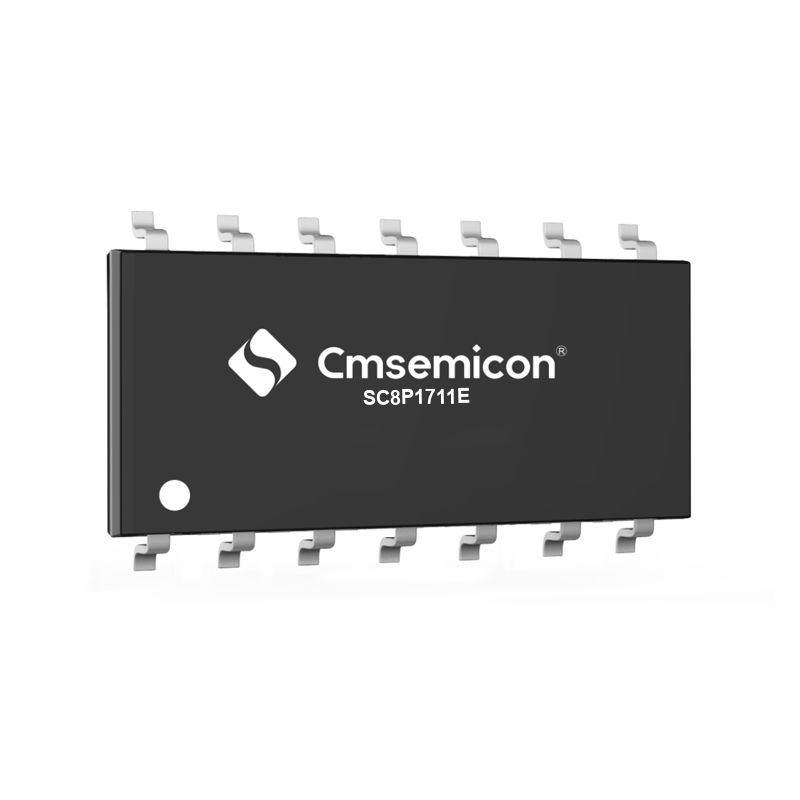

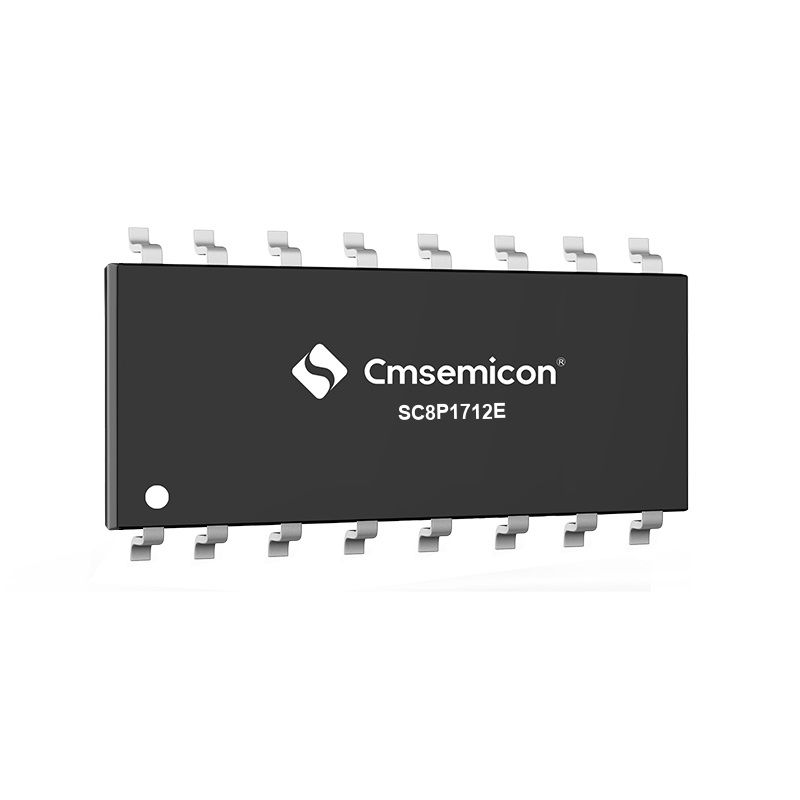

SC8P171xE is a CmsemiconOTP ADC type chip that supports C, supports internal RC oscillation 16MHz, working voltage 1.8V-5.5V, GPIO up to 14, built-in LVD module, WDT, LCD, PWM module, high-precision 12-bit ADC and 8 Bit timer, built-in high-precision 1.2V reference voltage. Industrial standard design, can work at -40℃ to 85℃, and provide SOP8, SOP14, SOP16 packages.
> OTP ADC chip
> Working voltage frequency: 2.6V-5.5V @16MHz, 1.8V-5.5V @8MHz
> Working temperature: -40℃-85℃
> OTP 2K x 16Bit, 176 x 8Bit RAM
> Support internal oscillation mode
> Up to 14 general-purpose GPIOs
> 2 timed interrupts, RA and RB port level change interrupts
> 12-bit high-precision ADC
> Built-in LCD driver module
> 5 PWM modules-polarity selectable-4 channels common cycle, independent and empty Ratio-10-bit PWM accuracy
> 2 8-bit timers
> Built-in high-precision 1.2V reference voltage
> Built-in low voltage detection function (LVD)
> 8-level stack buffer
> Package types: SOP8, SOP14, SOP16
| Product | Name | Describe | Version |
|---|---|---|---|
|
SCMCU Writer | SCMCU Writer burning software |
V9.01.09 |
|
SCMCU IDE | SCMCU IDE compilation software |
V2.00.11 |
