Product Microcontroller SC8F series SC8F289X

Product description

Product model

Design & development

  • SC8F289X

    Cmsemicon touch enhanced flash memory 8-bit CMOS chip.


    Datasheet >

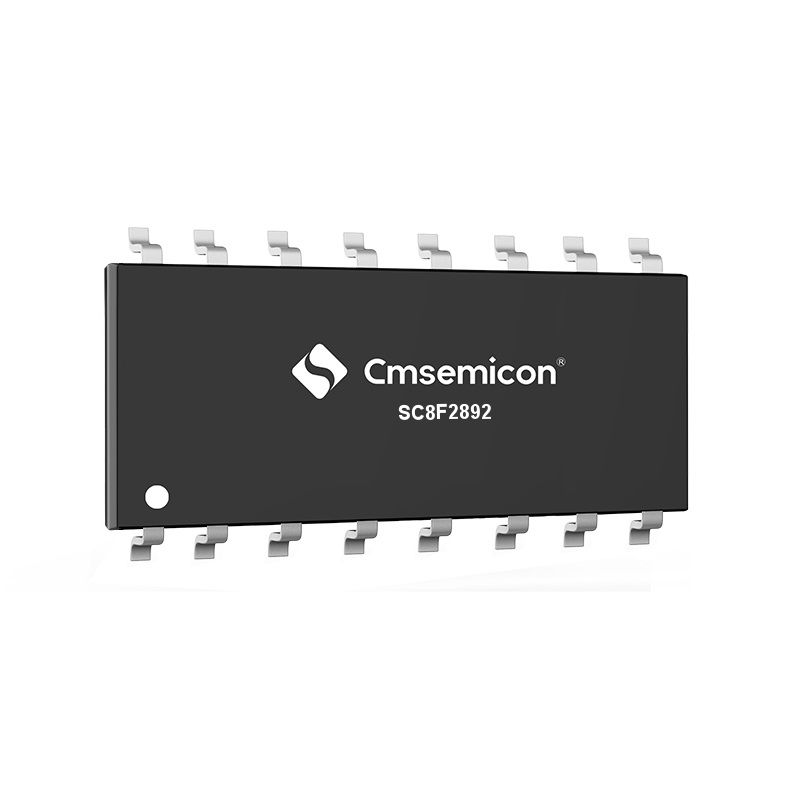

    SC8F2892 is a CmsemiconFLASH chip, Flash 4Kx14Bit, RAM256B, built-in RC oscillator 8MHz/16MHz, working voltage 2.5V-5.5V, GPIO up to 14, built-in touch button function, built-in WDT, LVD, high-precision 12-bit ADC, 2 operational amplifiers , provide 5-channel PWM.


    Features

    > Operating voltage frequency: 3.3V-5.5V @16MHz, 2.5V-5.5V @8MHz

    > Operating temperature: -20℃-75℃

    > Built-in 4K x 14Bit FLASH, 256B general RAM

    > Support internal oscillation 8MHz/16MHz

    > Up to 14 A general-purpose GPIO

    > 2 timer interrupts, RB port level change interrupt

    > 2 8-bit timers

    > Built-in touch button function

    > 5 PWM, support 2 complementary PWM output

    -5 PWM independent duty cycle

    > High precision 12 Bit ADC (optional internal reference source, built-in high-precision reference voltage)

    > Support 2 operational amplifiers

    > Built-in WDT function

    > Built-in low-voltage detection circuit

    > 8-level stack buffer

    > Package type: SOP16


  • Product model

    Part Number Package Frequency (MHz) Core Temp Voltage Memory Type ROM RAM Data Flash EEPROM GPIO DMA Timer LSE WDT/WWDT RTC UART I²C SPI CAN LIN PWM/EPWM SAR-ADC SAR-ADC-bit SAR-ADC-ch SAR-ADC-speed(Msps) DAC DAC-bit OPA COMP PGA LCD LED Touch Encryption Other Interface
    SAR-ADC-unitSAR-ADC-bitSAR-ADC-chSAR-ADC-speed(Msps)DAC-unitDAC-bit
    SC8F2892 SOP16 16 RISC -20~75 2.5 - 5.5 FLASH 4K×14 256B / / 14 / 2x8 / 1 / / / / / / 5 1 12 14 / / / 2 / /

    /

    /

    		 7 / /
    SC8F2892B SOP16 16 RISC -40~85 2.1~5.5 FLASH 4KB 256B / 32 14 / 2x8 / Y / 1 1 1 / / 5 1 12 14 / / / 2 / /

    /

    /

    		 7 / /

  • Design & development

    Develop software
    Product Name Describe Version
    SCMCU Writer

    SCMCU Writer burning software


    		 V9.01.09
    SCMCU IDE

    SCMCU IDE compilation software


    		 V2.00.11

    More
