MTP AD chip, Flash 2Kx16Bit, RAM256B, built-in EEPROM 128B, built-in high-precision RC oscillator 8MHz/16MHz.
MTP AD chip, Flash 2Kx16Bit, RAM256B, built-in EEPROM 128B, built-in high-precision RC oscillator 8MHz/16MHz.

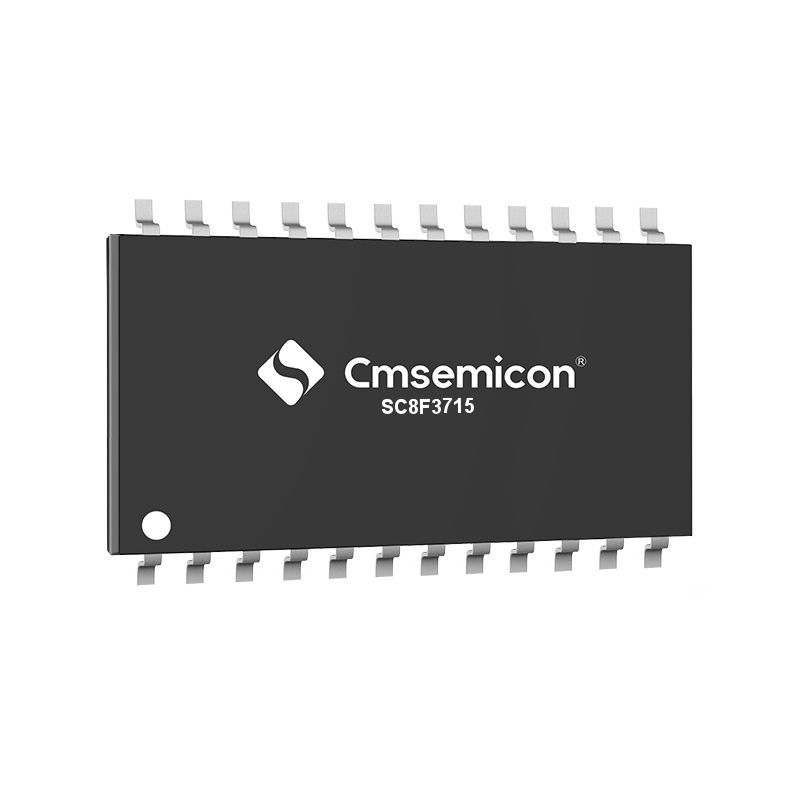

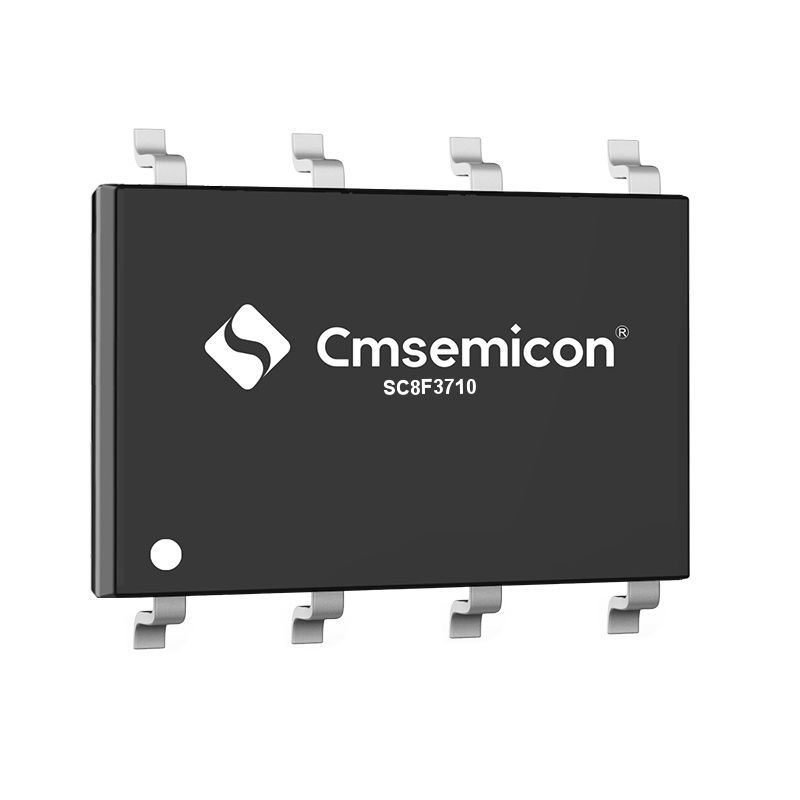

SC8F371x is a Cmsemicon MTP AD chip, Flash 2Kx16Bit, RAM256B, built-in EEPROM 128B, built-in high-precision RC oscillator 8MHz/16MHz, working voltage 2V-5.5V, GPIO up to 18, built-in WDT, LVD, high-precision 12-bit ADC, USART Communication module, support table lookup function, provide 5-channel PWM, built-in LCD drive module. Industrial standard design, can work at -40℃ to 75℃, and provide SOP8 and SSOP24 packages.
> AD chip
> Working voltage frequency: 2.6V-5.5V @16MHz, 2V-5.5V @8MHz
> Working temperature: -40℃-75℃
> Built-in 2K x 16Bit ROM, 256B general RAM, 128B EEPROM
> Support internal oscillation
> Up to 18 general-purpose GPIOs
> Built-in LCD driver module
> 2 8-bit timers, 1 16-bit timer
> 5 PWMs, support 2 complementary PWM outputs
> Support USART function
> Built-in WDT function
> Built-in low voltage detection function ( LVD)
> 8-level stack buffer
> Package type: SOP8, SSOP24
| Product | Name | Describe | Version |
|---|---|---|---|
|
SCMCU Writer | SCMCU Writer burning software |
V9.01.09 |
|
SCMCU IDE | SCMCU IDE compilation software |
V2.00.11 |
