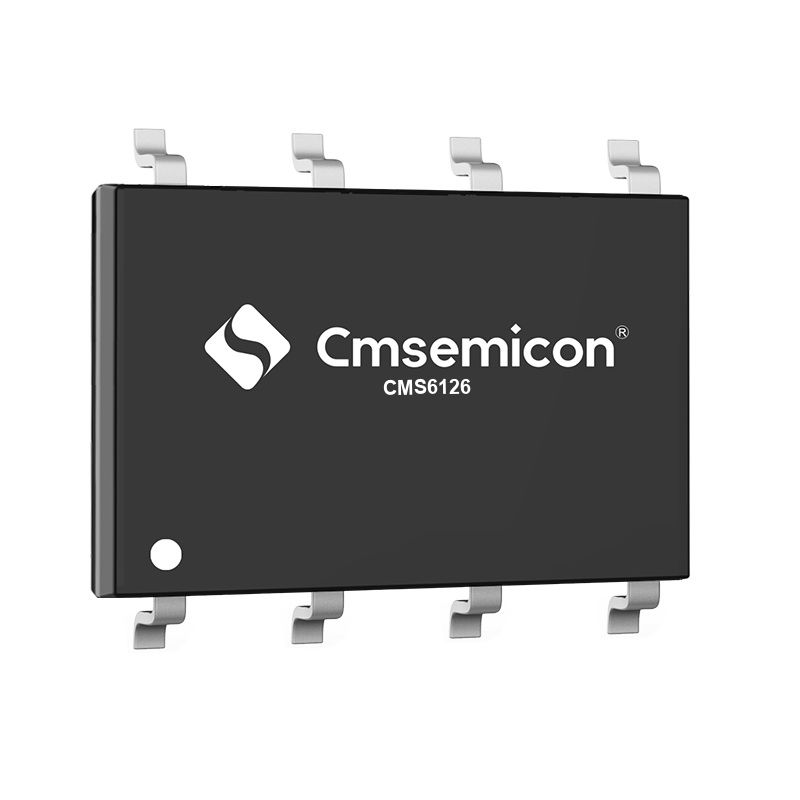

CMS6x26 is a single-phase high-voltage high-speed gate driver IC designed for bridge circuits composed of dual N-channel VDMOS power transistors or IGBTs. The chip has a built-in dead time of 320ns. The zone time is the dead zone time set by the microcontroller. Operating temperature: -20°C to 85°C; available in SOP8 package.

> Floating absolute voltage +600V

> Output current +0.21A/-0.40A@15V

> Power supply voltage range: 10V~20V

> Built-in VCC, VBS undervoltage protection UVLO

> Built-in pass-through prevention function

> Built-in 320ns dead time

> High and low side channel matching

> 3.3V/5V input logic compatible
