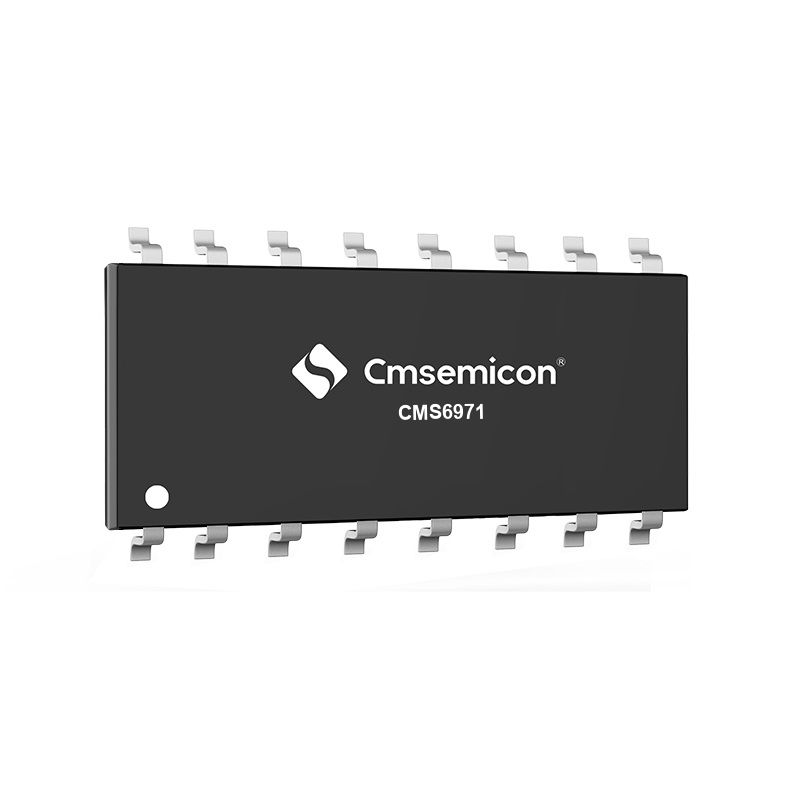

CMS69x1 is a three-phase half-bridge pre-driver IC for driving P/N MOSFET. It has built-in undervoltage protection, shoot-through prevention and dead time; input logic level is compatible with 3.3V/5V, output 11V gate voltage to drive PMOS, NMOS; built-in 5V/60mA LDO. Operating temperature: -20℃ to 85℃; SOP16 package is available.

> PN MOSFET three-phase half-bridge driver

> Low standby power consumption

> HO output current +0.06A/-0.30A@VBB=24V

> LO output current +0.05A/-0.26A@VBB=24V

> Built-in 5V/60mA LDO

> Built-in power supply voltage undervoltage protection UVLO

> Built-in pass-through prevention function

> Built-in 300ns dead time

> High and low side channel matching

> 3.3V/5V input logic compatible
