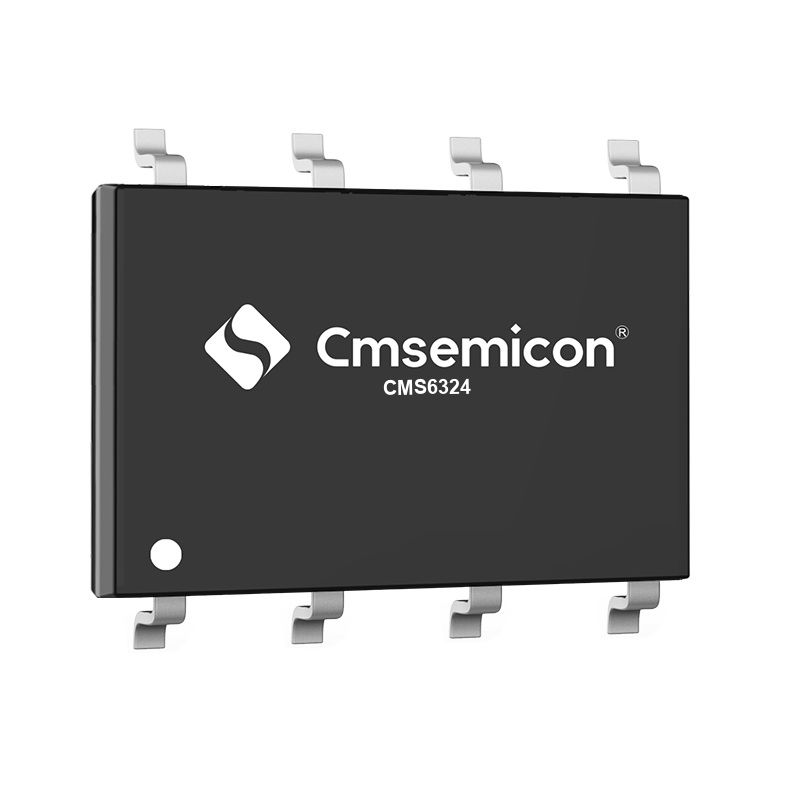

CMS6x24 is a single-phase medium voltage high-speed gate driver IC designed for bridge circuits composed of dual N-channel VDMOS power tubes or IGBTs. The chip has a built-in 310ns dead time. The dead time of the output signal of the microcontroller is greater than the built-in dead time. The dead time is the dead time set by the microcontroller. Operating temperature: -20°C to 85°C; available in SOP8 package.

> Floating absolute voltage +100V

> High peak current output capability +1.0A/-1.3A@15V

> Power supply voltage range: 9V~20V

> Built-in VCC undervoltage protection UVLO

> Built-in pass-through prevention function

> Built-in 310ns dead time

> High and low side channel matching

> 3.3V/5V input logic compatible
