Product Microcontroller SC8P series SC8P1762E

Product description

Product model

Design & development

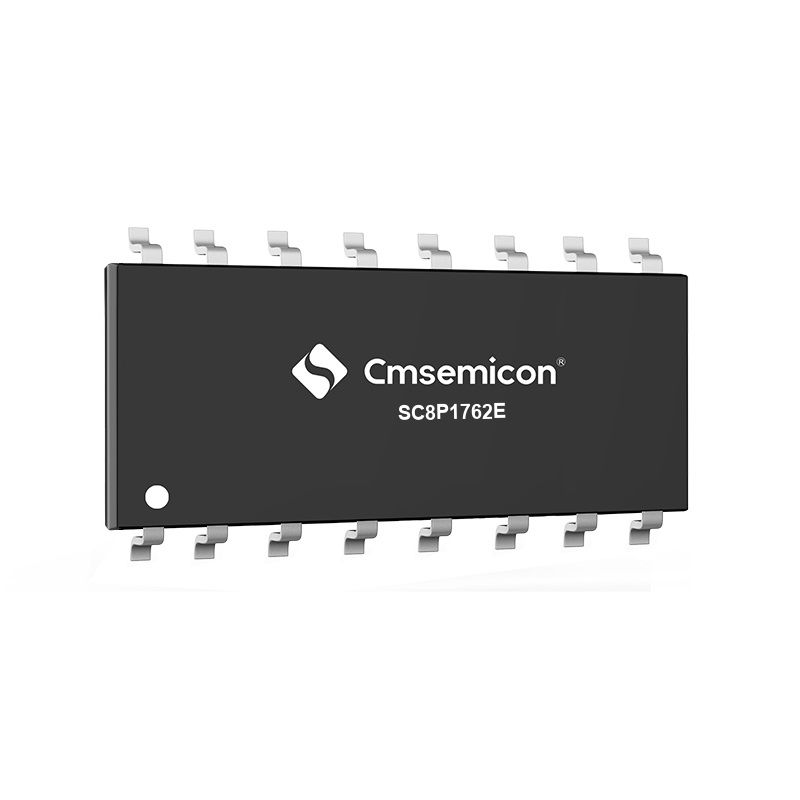

  • SC8P1762E

    SC8P1762E series MCU is mainly oriented to the motor drive market. Provide a friendly development environment interface, convenient and easy to use.


    Datasheet >

    SC8P1762E series MCU is a CmsemiconOTP motor driver chip, working voltage 2.1V~5.5V, integrated high-precision 12-bit ADC, built-in H-bridge drive motor, built-in two PWM and LCD modules, built-in high-precision 1.2V reference voltage, -40 ℃-85℃, available in SOP16 package.


    Features

    > OTP motor-driven MCU

    > OTP: 2Kx16Bit, RAM: 176x8Bit

    > Wide operating voltage range: 2.1~5.5V

    > Operating temperature: -40℃-85℃

    > Internal RC oscillation

    > 2 channels PWM

    > Built-in H-bridge circuit can be directly driven Motor

    > Built-in WDT

    > Built-in LCD 1/2Bias COM driver module

    > 2-channel 8-bit timer

    > Built-in high-precision 1.2V reference voltage

    > 12-bit high-precision ADC

    > 10pin chip

    > Support SOP16 package


  • Product model

    Part Number Package Frequency (MHz) Core Temp Voltage Memory Type ROM RAM Data Flash EEPROM GPIO DMA Timer LSE CAN LIN PWM/EPWM SAR-ADC SAR-ADC-bit SAR-ADC-ch SAR-ADC-speed(Msps) DAC DAC-bit OPA COMP PGA LCD LED Touch Encryption Other Interface
    SAR-ADC-unitSAR-ADC-bitSAR-ADC-chSAR-ADC-speed(Msps)DAC-unitDAC-bit
    SC8P1762E SOP16 8 RISC -40~85 2.1~5.5 OTP 2K×16 176B / / 10 / 2x8 N / / 2 1 12 9 / / / / / /

    1

    /

    		 / / /

  • Design & development

    Develop software
    Product Name Describe Version
    SCMCU Writer

    SCMCU Writer burning software


    		 V9.01.09
    SCMCU IDE

    SCMCU IDE compilation software


    		 V2.00.11
