OTP ADC type supports C chip, supports internal RC oscillation 8MHz, working voltage 2.1V-5.5V, GPIO up to 14.
OTP ADC type supports C chip, supports internal RC oscillation 8MHz, working voltage 2.1V-5.5V, GPIO up to 14.

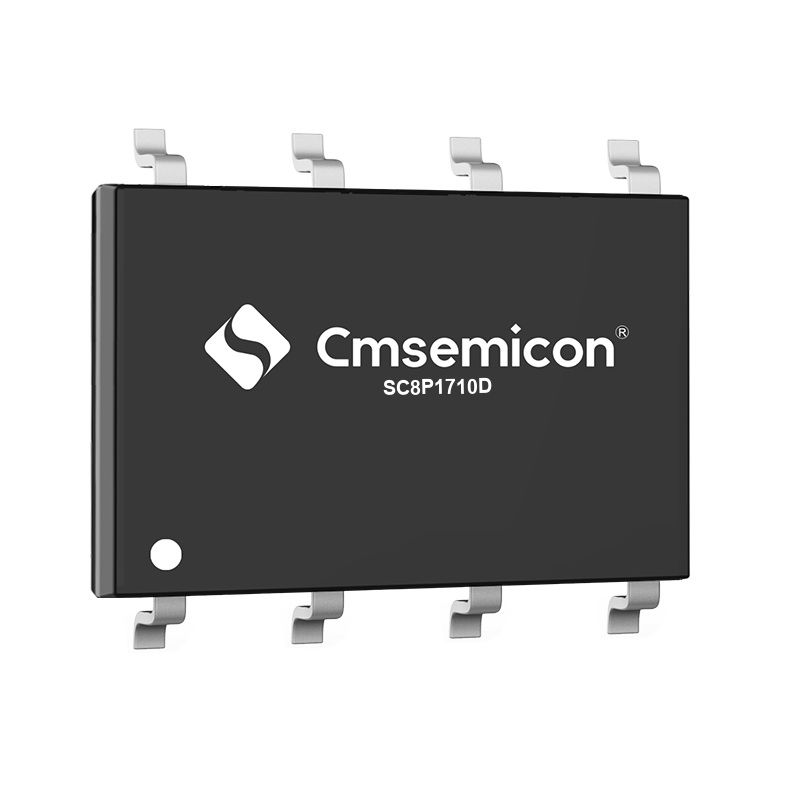

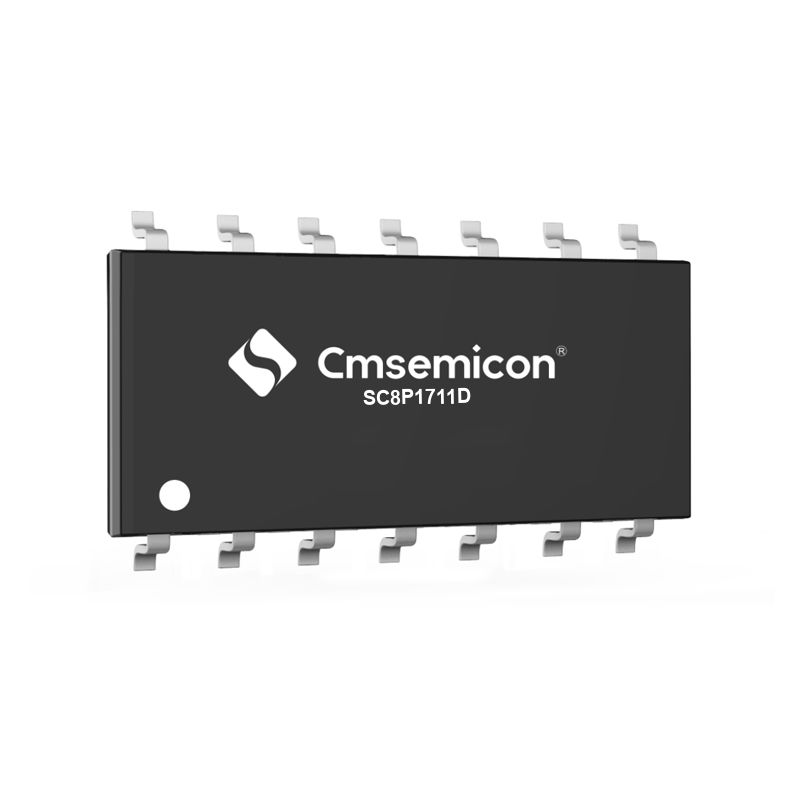

SC8P171xD is a Cmsemicon OTP ADC type chip that supports C. It supports an internal RC oscillation of 8MHz, a working voltage of 2.1V-5.5V, a maximum of 14 GPIO, built-in LVD module, WDT, LCD, PWM module, high-precision 12-bit ADC and 8-bit timer with built-in high-precision 1.2V reference voltage. Industrial standard design, can work at -40℃ to 85℃, and provide SOP8, SOP14, SOP16 packages.
> OTP ADC chip
> Operating voltage frequency: 3.0V-5.5V @8MHz, 2.1V-5.5V @4MHz
> Operating temperature: -40℃-85℃
> OTP 2K x 16Bit, 176 x 8Bit RAM
> Support internal and oscillation mode
> Up to 14 general-purpose GPIO
> 12-bit high-precision ADC
> Built-in LCD drive module
> 2 PWM modules
> 2 8-bit timers
> Built-in high-precision 1.2V reference voltage
> Built-in WDT function
> Built-in low voltage detection function (LVD )
> Package type: SOP8, SOP14, SOP16
Product | Name | Describe | Version |
---|---|---|---|
SCMCU Writer | SCMCU Writer burning software |
V9.01.09 | |
SCMCU IDE | SCMCU IDE compilation software |
V2.00.11 |
