  • SC8F37xx

    MTP AD chip, Flash 4Kx16Bit, RAM344B, built-in EEPROM 128B.


    Datasheet >

    SC8F37xx is a CmsemiconMTP AD chip, Flash 4Kx16Bit, RAM344B, built-in EEPROM 128B, built-in RC oscillator 8MHz/16MHz and external 8MHz crystal oscillator, working voltage 1.8V-5.5V, GPIO up to 14, built-in WDT, LVD, high-precision 12-bit ADC , 2 operational amplifiers, support the look-up table function, and provide 5 PWMs. Industrial standard design, can work at -20℃ to 75℃, and provide MSOP10, SOP16, TSSOP16 packages.


    Features

    > AD chip

    > Working voltage frequency: 3.5V-5.5V @16MHz, 1.8V-5.5V @8MHz

    > Working temperature: -20℃-75℃

    > Built-in 4K x 16Bit ROM, 344B general RAM, 128B EEPROM

    > Support internal Oscillate 8MHz/16MHz and external 8MHz crystal oscillator

    > Up to 14 general-purpose GPIO

    > 2 8-bit timers, 1 16-bit timer

    > 5 PWMs, support 2 complementary PWM outputs

    > Support 2 operational amplifiers, offset <2mv, Can be used as a comparator

    > Built-in WDT function

    > Built-in low voltage detection function (LVD)

    > 8-level stack buffer

    > Package types: MSOP10, SOP16, TSSOP16


  • Product model

    Part Number Package Frequency (MHz) Core Temp Voltage Memory Type ROM RAM Data Flash EEPROM GPIO DMA Timer LSE WDT/WWDT RTC UART I²C SPI CAN LIN PWM/EPWM SAR-ADC SAR-ADC-bit SAR-ADC-ch SAR-ADC-speed(Msps) DAC DAC-bit OPA COMP PGA Driver LCD LED Touch Encryption Other Interface
    SAR-ADC-unitSAR-ADC-bitSAR-ADC-chSAR-ADC-speed(Msps)DAC-unitDAC-bit

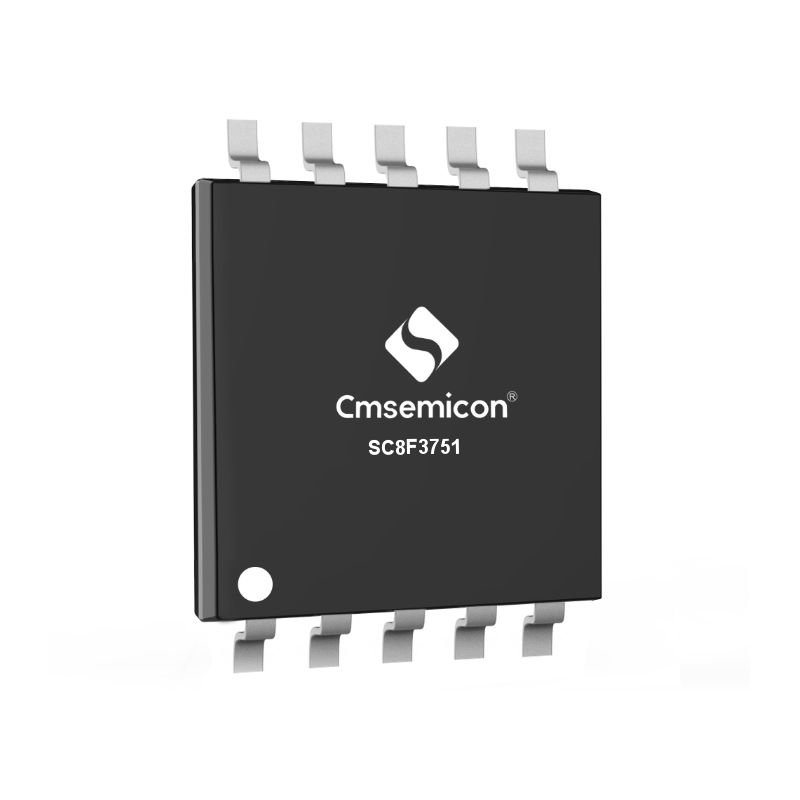

    SC8F3751 MSOP10 16 RISC -20~75 1.8~5.5 MTP 4K×16 344B / 128 8 / 1x16,2x8 / 1 / / / / / / 5 1 12 8 / / / / / / /

    /

    /

    		 / / /

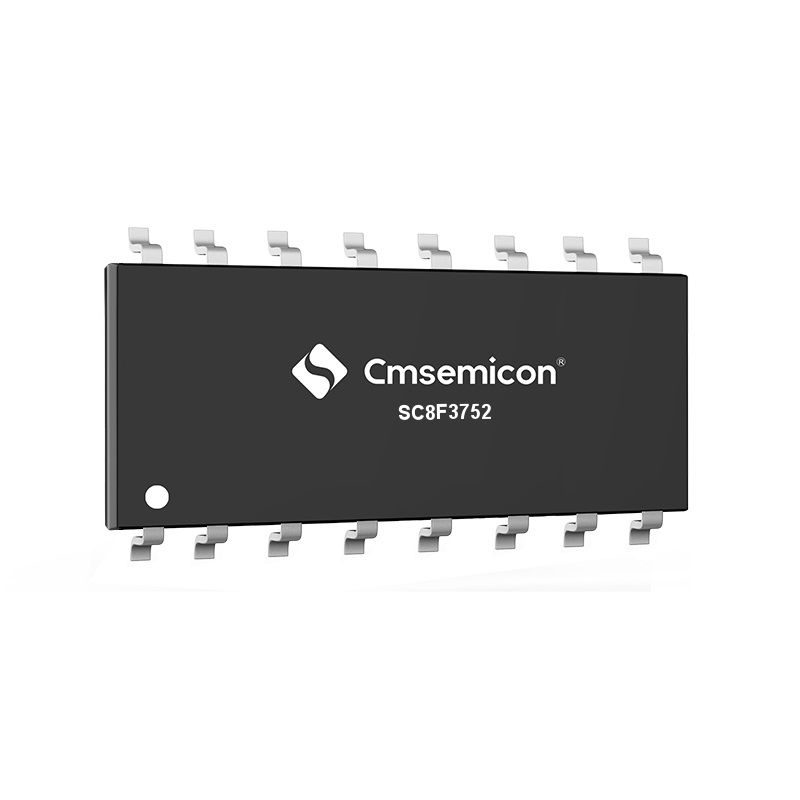

    SC8F3752 SOP16 16 RISC -20~75 1.8~5.5 MTP 4K×16 344B / 128 14 / 1x16,2x8 / 1 / / / / / / 5 1 12 13 / / / 2 / / /

    /

    /

    		 / / /

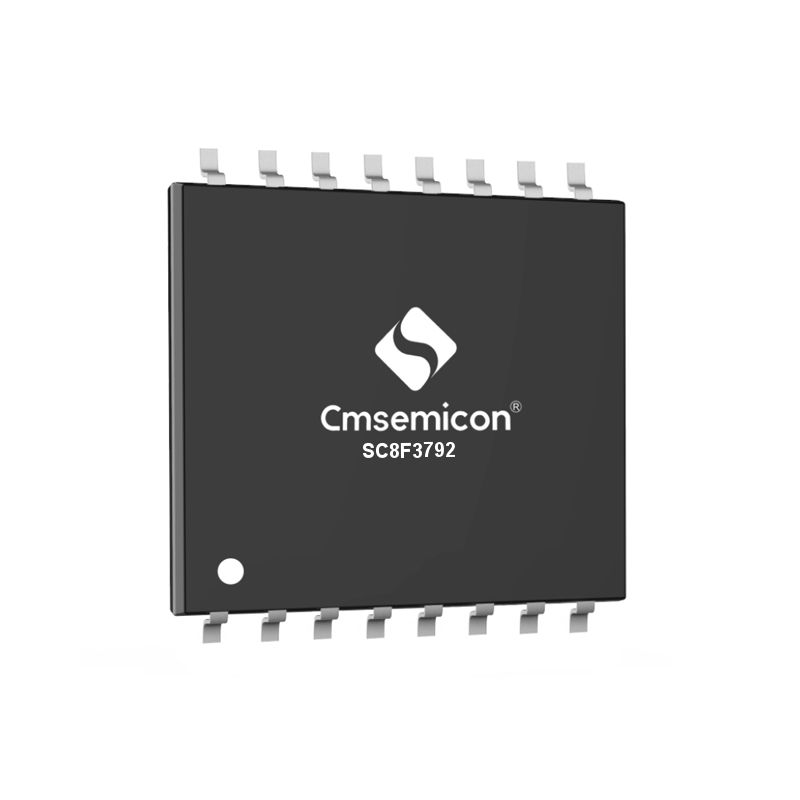

    SC8F3792 TSSOP16 16 RISC -20~75 1.8~5.5 MTP 4K×16 344B / 128 14 / 1x16,2x8 / 1 / / / / / / 5 1 12 13 / / / 2 / / /

    /

    /

    		 / / /

  • Design & development

    Develop software
    Product Name Describe Version
    SCMCU Writer

    SCMCU Writer burning software


    		 V9.01.09
    SCMCU IDE

    SCMCU IDE compilation software


    		 V2.00.11
